Photographing the night sky can be significantly improved when a camera is connected to a telescope. This is where a telescope camera adapter comes into play. These simple attachments help marry the precision of telescopes with the versatile capabilities of your camera.
A telescope camera adapter is made to fit between a telescope’s eyepiece and your camera’s lens mount. It essentially allows the telescope to function as a colossal lens, providing magnification and clarity that’s hard to achieve with standard cameras alone.
This setup means you can focus directly on celestial objects like the moon and planets, or deep sky objects like star clusters and even distant galaxies with incredible detail.
Attaching a DSLR (or Mirrorless) camera to a telescope is done via the T-mount system.
The T-mount system is a standardized lens mount system originally developed by Tamron in the 1950s-1960s. They devised the system to sell their lenses to fit other makes of camera bodies.
It allows lenses, telescopes, or other optical devices to be attached to cameras using a simple and versatile mechanism. Here’s how it works:
Components: The system consists of four main parts:
- A camera.
- A T-Ring: The T-Ring is the object which fits into your brand name camera on one side and has female T-Threads on the other side.
- A T-Adapter: This connects the telescope or lens to the camera using male T-threads.
- A lens or telescope.
T-Threads: The system uses metric T-threads, typically 42mm in diameter with a 0.75mm thread pitch. When screwed together, the matching threads on the T-Ring and T-Adapter allow a camera to be rigidly mounted to a lens or a telescope.
Compatibility: T-Rings are designed to fit specific camera brands, such as Canon or Nikon. T-Adapters are tailored to different telescope types, such as Schmidt-Cassegrain, Refractors and Edge HD telescopes.
You can use T-Adapters on Reflector telescopes but it may require a more complex set-up.
Reflector telescopes often have limited back focus, meaning the camera may not reach proper focus without adjustments. You might need a low-profile focuser or a Barlow lens to extend the focus point.
There are adapters designed for various camera models and telescope types. Some adapters are universal, while others might be brand-specific, making it essential to check compatibility before purchasing.
For instance, a Canon user might need a different adapter compared to someone using a Nikon or Sony camera.
When picking an adapter, certain features stand out. Look for models with secure attachment mechanisms to prevent unwanted camera movement, and consider ones with built-in rings for better stabilization. The material used can also affect durability and weight, both crucial during long photo sessions.
Challenges can arise, like ensuring the adapter fits snugly or managing the additional weight your equipment will carry. Proper setup is essential to avoid blurry images, and balancing the equipment to prevent tipping is important too.
However, with the right know-how and practice, these hurdles become minor detours in the exciting road of astrophotography.
Note: This post contains affiliate links. If you make a purchase through these links, I may earn a small commission which helps support my content creation at no extra cost to you.
Highly Rated T-Rings & Adapters (For DSLR/SLR Cameras)
Svbony T-Ring & Adapter
Svbony have produced a T-Ring and Adapter combination which has proved to be a popular choice for astrophotography enthusiasts.
This T-ring/Adapter combination comes in two varieties and allows seamless connection between your Canon or Nikon camera to a telescope with standard 1.25-inch eyepiece port.
- Connect with camera; svbony 1.25″ telescope camera adapter compatible with Canon EOS & Rebel SLR & DSLR; it doesn’t fit EOS-M models
- Connect with telescope; t2 ring allows you to attach your EOS camera to the telescope or microscope with standard 1.25 inch eyepiece ports
- All metal; high quality aluminum materials makes the telescope mount adapter more durable; one time purchase for long term use
- Telescope camera adapter; extended cylinder length 68mm; M42x0.75mm outer and inner thread connect with t-ring and telescope mount adapter; inside of the adapter is fully threaded to minimize reflections
- Usage; twist the telescope mount adapter into the extension tube; twist the t-ring into the extension tube; twist the telescope camera adapter to the camera; put the telescope camera adapter into telescope interface
- Connect with camera; svbony 1.25″ telescope camera adapter compatible with Nikon SLR / DSLR models; it doesn’t fit mirrorless cameras
- Connect with telescope; t2 ring allows you to attach your EOS camera to the telescope or microscope with standard 1.25 inch eyepiece ports
- All metal; high quality aluminum materials makes the telescope mount adapter more durable; one time purchase for long term use
- Telescope camera adapter; extended cylinder length 68mm; M42x0.75mm outer and inner thread connect with t ring and telescope mount adapter; inside of the adapter is fully threaded to minimize reflections
- Usage; twist the telescope mount adapter into the extension tube; twist the t ring into the extension tube; twist the telescope camera adapter to the camera; put the telescope camera adapter into telescope interface
Starboosa T-Ring & Adapter
The Starboosa T-Ring & Adapter combination is designed for astrophotography, allowing DSLR cameras to connect to telescopes for prime-focus or eyepiece-projection photography.
The two combination varieties available are compatible with Canon or Nikon SLR cameras, but not mirrorless models.
- Indispensable adapter for Canon SLR astrophotography, through which the telescope can be used as the main lens of a SLR, and then shoot high-definition astronomical images.
- Versatility: Suitable for all Canon SLR cameras for prime focus or eyepiece projection photography. (Tip: Mirrorless cameras are not suitable for use)
- Universal:The extension tube has an internal depth of 68mm and an internal diameter of 38mm, and is suitable for most 1.25 “astronomical eyepieces. It is connected to the T2 & T ring and 1.25” T adapter through the M42 thread on the end face.
- Simple and easy operation: Put the telescope eyepiece into the extension tube and fix it with side screw, then install T2 & T-ring and 1.25 “T adapters at the two ends of the fixing tube, then link the T2 & T-ring with the camera, and then link the entire assembly with the telescope.
- Indispensable adapter for nikon SLR astrophotography, through which the telescope can be used as the main lens of a SLR, and then shoot high-definition astronomical images.
- Versatility: Suitable for all nikon SLR cameras for prime focus or eyepiece projection photography. (Tip: Mirrorless cameras are not suitable for use)
- Universal:The extension tube has an internal depth of 68mm and an internal diameter of 38mm, and is suitable for most 1.25 “astronomical eyepieces. It is connected to the T2 & T ring and 1.25” T adapter through the M42 thread on the end face.
- Simple and easy operation: Put the telescope eyepiece into the extension tube and fix it with side screw, then install T2 & T-ring and 1.25 “T adapters at the two ends of the fixing tube, then link the T2 & T-ring with the camera, and then link the entire assembly with the telescope.
Celestron T-Ring & Adapter
The Celestron T-Adapter is a popular choice among astrophotography enthusiasts. It allows you to connect your DSLR or SLR camera to a telescope for prime focus photography, effectively turning your telescope into a powerful lens.
- Replacement for Canon—-T-Ring Adapter replacement for 5D, 5D Mark II, 50D, 60D, 20D, 30D, 40D, 350D, 400D, 450D, 500D, 550D, 600D, 1100D, 1D, T4KI, Rebeliii1 T3i, T2i , T1I, XT, XTI, XSI, XS and all Reflex cameras.
- Function—-The perfect material and processing of the telescope adapter ring. Telescope Mount Adapter connects the camera to a telescope with a 1.25-inch diameter eyepiece with a 31.7 mm diameter.
- Perfect shot—-To take pictures in the gallery, start with a telescope, a camera and a suitable camera adapter. The telescope adapter allows you to connect to the telescope to take pictures immediately without leaving the subject in the frame, thus completing a perfect shot, allowing you to take sharp photos and without blur.
- Convenient—-Telescope Camera Adapter includes a T-ring for camera and a 1.25 to M42 T-coupling. The inner ring can be rotated to make the lens stable and stable, effectively avoiding the vibrations of the lens and offering better stability.
- and durable—-Telescope Camera Adapter is made with a structure in a selected metal structure and an anodized aluminum process, stable processing, high processing accuracy, good resistance to rust and corrosion, not easy to fade, rust and
Highly Rated T-Rings & Adapters (For Mirrorless Cameras)
Celestron 93419 T-Ring for Canon EOS Digital Cameras
- Attaches to Canon EOS DSLR and SLR camera bodies
- Sturdy bayonet flange locks in place just like a lens, providing secure contact
- Attaches to a variety of camera adapters and accessories via standard t-threads
- Fits EOS model cameras only and will not work with other Canon camera bodies
- A T-Ring is one of the first accessories you will need if you want to take pictures through a telescope or spotting scope
Celestron 93402 T-Ring For Nikon Digital Cameras
- This Celestron T-Ring attaches to all Nikon SLR and DSLR camera bodies.
- Sturdy bayonet flange locks in place just like a lens, providing secure contact
- Attaches to a variety of camera adapters and accessories via standard t-threads.
- Celestron T-Ring for Nikon Camera

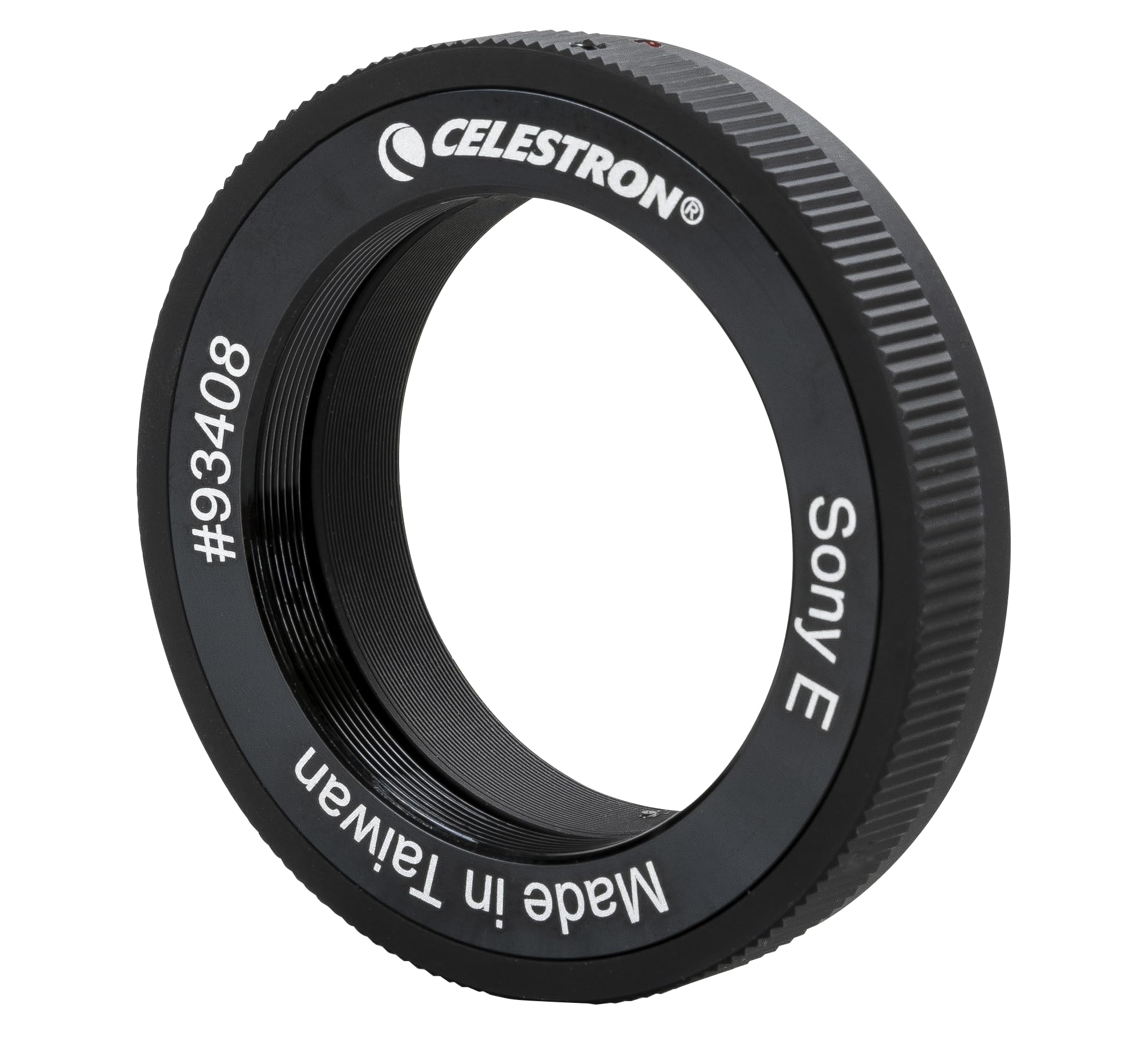

Celestron 93408 T-Ring for Sony E-Mount Cameras
- ESSENTIAL ACCESSORY: A T-ring is one of the first accessories you will need to take pictures through a telescope or spotting scope
- TERRESTRIAL AND CELESTIAL IMAGING: Pair your T-ring with a celestron T-adapter to turn your telescope or spotting scope into a large telephoto lens
- CAMERA COMPATIBILITY: T-Ring attaches to E-mount Sony mirrorless camera bodies only
- BODY: 42mm female diameter thread, Internal surfaces are blackened and glare-threaded to provide the highest contrast, the T-Ring has a ribbed surface for a secure grip while threading/unthreading
- ATTACHMENT INSTRUCTIONS: To use this T-Ring, place the E-Mount T-Ring on your Sony mirrorless camera, just like changing a lens, line up the T-Ring to your camera’s lens mount, push it in and turn until you hear a click, the sturdy bayonet flange locks for a secure fit
Celestron 93625 1.25 Inch Universal T-Adapter
- USE YOUR DSLR FOR ASTROIMAGING: The Celestron Universal T-Adapter connects a DSLR or SLR camera to a telescope for prime focus photography
- WORKS WITH MOST TELESCOPES: The adapter’s chrome barrel slides into any focuser that accepts 1.25” accessories
- COMPATIBLE WITH ANY CAMERA WITH T-THREADS: Simply attach a T-ring (camera brand specific, sold separately) to your DSLR or SLR instead of a lens and then attach to the T-Adapter
- ATTACH YOUR T-ADAPTER: The Universal T-Adapter hosts it’s T-threads on the top and screws into a T-Ring (sold separately) that is designed to attach to the brand-specific mounting flange on your camera; The barrel end of the T-Adapter will then slide into the focuser, similar to an eyepiece, and lock into place with the focuser or eyepiece thumbscrew
- UNBEATABLE WARRANTY & SUPPORT: Buy with confidence from Celestron, a leading telescope brand in California since 1960; Your purchase includes a 2-Year Warranty and unlimited support from our team of experts
Enhancing Night-Sky Photography: Techniques and Tips
Photography among the stars comes with its own set of challenges and rewards. Setting up for a successful astrophotography session requires a bit of preparation, starting right from your equipment.
Ensuring that your telescope, camera, and adapter are all securely connected is crucial to avoid those annoying wobbles that can ruin a perfect shot.
Optimal settings can vary with different celestial events, so familiarizing yourself with your camera’s manual settings is a smart move.
Adjusting ISO settings to manage light sensitivity and playing around with exposure to capture details without overexposure are vital steps. Each tweak can significantly affect the clarity and detail of your photos.
Techniques, like using a remote shutter or self-timer, help eliminate vibrations caused by pressing the camera’s button. Such strategies are simple yet effective for clearer images.
Additionally, time-lapse photography can create stunning sequences that capture the movement of stars, adding an extra touch of drama to your collection.
Astrophotography isn’t about instant success; it’s about patience and experimentation. Spending some time trying different angles, settings, and techniques can lead to discovering the best methods that work for you.
Practicing under various conditions lets you get a feel for how elements like weather and light pollution affect your photos.
Using apps or computer software to plan your sessions can give you a head start. Some programs can help predict celestial events or provide star maps, assisting in deciding where to focus.
With these preparations and tips in your arsenal, capturing breath-taking night-sky photos can become a rewarding and enjoyable hobby.
Find more night sky photography advice in the post Astronomy Photography Tips: Capturing The Cosmos
